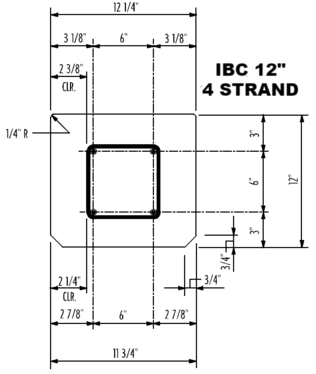

12" IBC

CONCRETE STRENGTH = 6000PSI

SPIRAL WIRE - W3.4 (5 GAUGE) COLD DRAWN WIRE

STRAND - 7/16" 270k LO LAX UNIT WT. (LB/LF)-145 AREA (SQ.IN.) 145

:

IBC 4 & 6 STRAND PILINGS

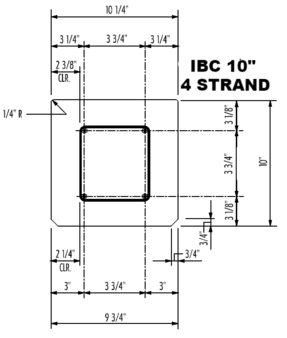

10" IBC

CONCRETE STRENGTH = 6000PSI

SPIRAL WIRE - W3.4 (5 GAUGE) COLD DRAWN WIRE

STRAND - 7/16" 270k LO LAX UNIT WT. (LB/LF)-101 AREA (SQ.IN.) 100

:

IBC 12" X 16" BEAM

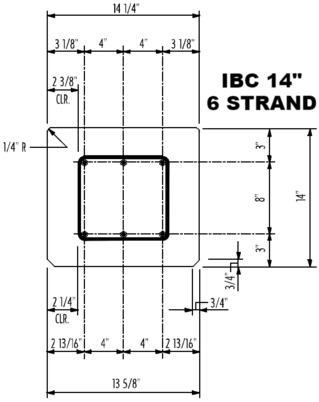

14" IBC

CONCRETE STRENGTH = 6000PSI

SPIRAL WIRE - W3.4 (5 GAUGE) COLD DRAWN WIRE

STRAND - 1/2" 270k LO LAX UNIT WT. (LB/LF)-198 AREA (SQ.IN.) 196

:


​​CLICK ON DRWG FOR PDF

12" IBC

CONCRETE STRENGTH = 6000PSI

SPIRAL WIRE - W3.4 (5 GAUGE) COLD DRAWN WIRE

STRAND - 1/12" 270k LO LAX UNIT WT. (LB/LF)-145 AREA (SQ.IN.) 144

:


14" IBC

CONCRETE STRENGTH = 6000PSI

SPIRAL WIRE - W3.4 (5 GAUGE) COLD DRAWN WIRE

STRAND - 1/12" 270k LO LAX UNIT WT. (LB/LF)-198 AREA (SQ.IN.) 195

:


12" X 16" IBC

CONCRETE STRENGTH = 6000PSI

SPIRAL WIRE - W3.4 (5 GAUGE) COLD DRAWN WIRE

STRAND - 1/2" 270k LO LAX UNIT WT. (LB/LF)-193 AREA (SQ.IN.) 192

IBC 8 STRAND PILINGS
